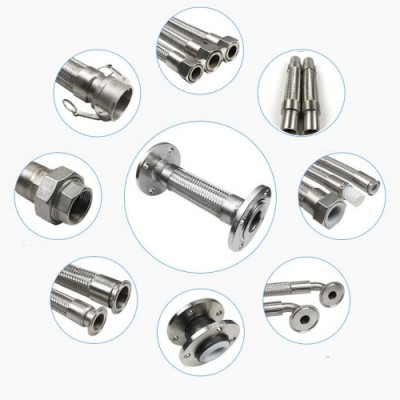

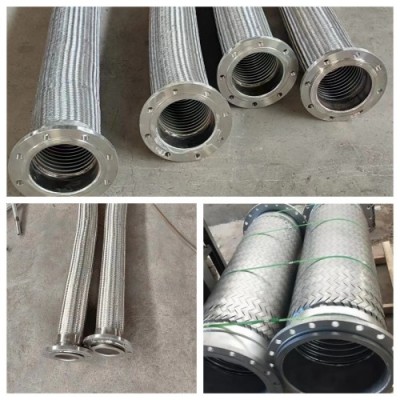

Stainless steel braided flexible hose

Stainless steel braided metal hoses are vital elements for most industries. They are two types – helical and annular corrugations. Each of them has several ratings of working pressures ranging from low to super high, from standard wall to heavy-wall.

Flexible metal hose used for conveying all kinds of medium is a kind of flexible element made up of stainless steel ripple hose consisting of outer braided layer, one or multilayer wire or steel belt net, with joints or flange at both ends. Its characteristic is: corrosion-resistance, high temperature resistance, low temperature resistance, light weight, small volume, and good flexibility.

Application: Flexible metal hose is widely used in the fields of petroleum, chemical industry, aerospace, metallurgy, electricity, gas, building, mechanical, construction, iron and steel, paper making, fabric, medicine, food and vessels for conveying water, steam, oil, chemicals, etc.

Inner Tube: SS304/SS316/SS316L/SS321/Monel

Construction: Annular

Braid: SS304/SS316/SS316L/SS321/Monel

Size: 1/4” to 24”

Working Temperature: -280°C to+420°C
