Camlock coupling

camlock coupling has a wide application in food or sanitary environments & highly corrosive applications. It effectively prevents contamination of product to be transported.

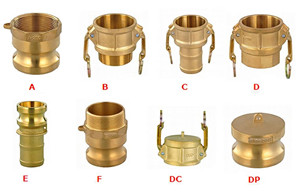

 camlock fittings comes into Type A, B, C, D, E, F, DC & DP with sizes ranging from 1/2" to 8". They are manufactured according to MIL-C-27487 (A-A-59326). These couplers & adapters are interchangeable except 1/2" and 8" which have no international standards.

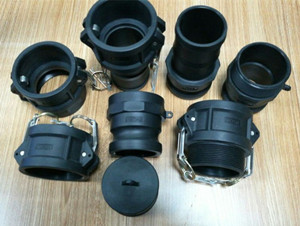

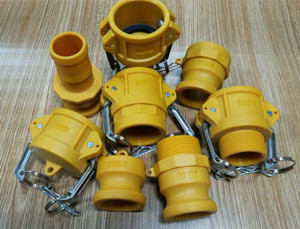

Camlock material: STAINLESS STEEL, ALUMINUM, BRASS, NYLON, POLYPROPYLENE

Handles (cam arms) and finger rings are made of stainless steel 304. Standard gaskets for stainless steel camlock couplings are black Buna-N. EPDM, Viton, PTFE & Neoprene gaskets are also supplied for higher working pressure. Always make sure the material is compatible with the liquids or powders to be delivered.

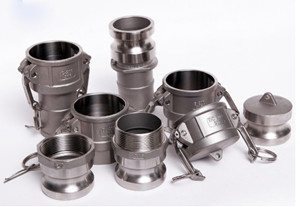

Stainless steel cam locks are ideal for use with salt water, water waste and many chemicals & can also be used with hydraulic oil and coolants.
