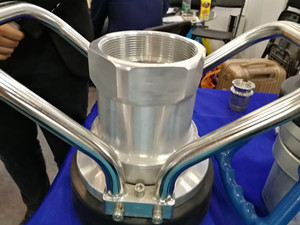

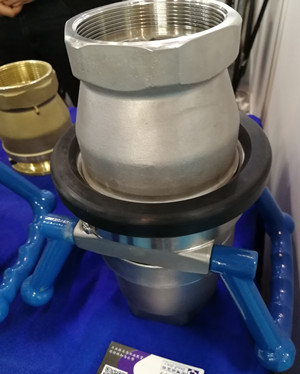

Dry Break Disconnect Hose Coupling
HuJin Technology are the few factories in china ,who can make the Dry Disconnect Hose Coupling . It contains Hose Unit and Tank Unit.
TECHNICAL DATA :
Seals: EPDM ,FKM, NBR .
Size: 1'' to 4'' .
Material: stainless steel 316, aluminum,brass,gunmetal ,as reuirment .
Working pressure: PN 10 to PN 25.
Test pressure: 1.5* working pressure
Thead: BSP ,NPT ,as requirment thread.
Compatibility: NATO STANAG 3756.
FEMALE HOSE UNIT
| NAME | SIZE | D/MM | THREAD | SS316 WEIGHT | ALU WEIGHT | BRASS WEIGHT |
| WOH56 | 1'' | 56 | BSP/NPT | 1.5 | 0.6 | 1.5 |
| WOH70 | 2'' | 70 | BSP/NPT | 3.0 | 1.2 | 2.8 |
| WOH105 | 2 1/2'' | 105 | BSP/NPT | 7.4 | 4.3 | 8.8 |
| WOH119 | 3'' | 117 | BSP/NPT | 8.8 | 4.9 | 10.2 |
| WOH164 | 4'' | 164 | BSP/NPT | 19.4 | 9.5 | 20.6 |
MALE TANK UNIT
| NAME | SIZE | D/MM | THREAD | SS316 WEIGHT | ALU WEIGHT | BRASS WEIGHT |
| WOT56 | 1'' | 56 | BSP/NPT | 0.8 | 0.3 | 0.8 |
| WOT70 | 2'' | 70 | BSP/NPT | 1.8 | 0.5 | 1.4 |
| WOT105 | 2 1/2'' | 105 | BSP/NPT | 2.9 | 1.0 | 3.0 |
| WOT119 | 3'' | 117 | BSP/NPT | 3.7 | 1.2 | 3.5 |
| WOT164 | 4'' | 164 | BSP/NPT | 6.9 | 3.3 | 7.4 |
